EC400201 Hollow Shaft Encoder

Series：EC系列

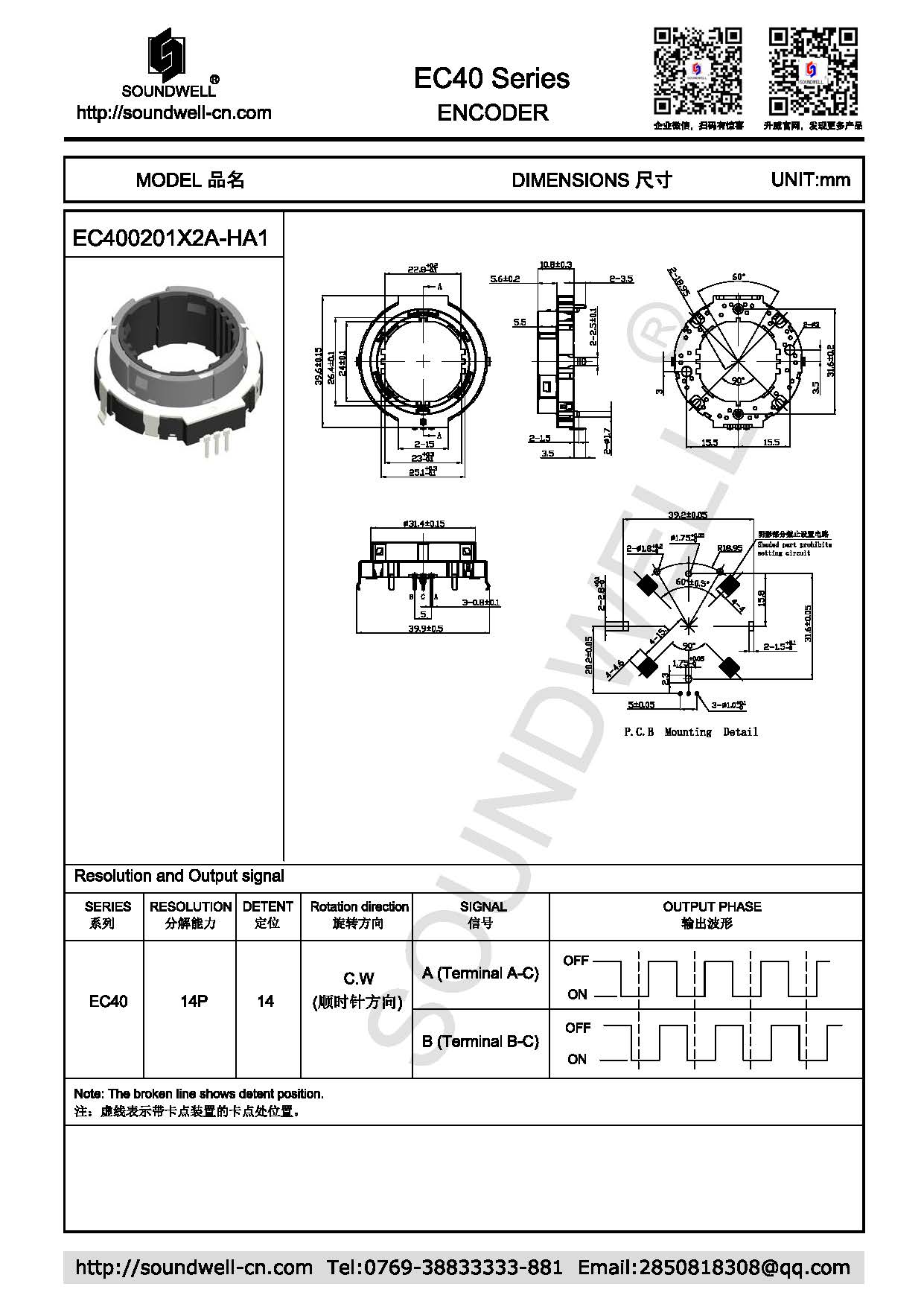

Format：See the following profile

Specifications　　

Encoder model：	EC400201 series
Applications：	Automotive electronics, audio products, household appliances and other related electronic devices;
Product Features:	Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring.
Functions：	It mainly plays the role of adjusting volume, adjusting temperature, frequency modulation, function switching, etc.
Main Specifications:	Dimensions: φ40mm Rated voltage: DC 5V Number of detent: 14 Pulses: 14 Rotational torque: 450±150gf.cm Rotational angle: 360° Working temperature: -40℃~85℃ Rotational life: 30,000 cycles Min

EC400201 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Rotational torque: 450±150gf.cm

2. Number of detent: 14 (Step angle: 25.71°±3°)

3. Shaft Wobble: 0.2 mm Max

4. Shaft play : 2° MAX

TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 14 pulses/360°

2. Phase difference: ≥5 ms

3. Rated voltage: DC 5V

4. Insulation resistance: 100MΩ 1 Minute at DC 250V

5. Dielectric voltage: 1 Minute at AC 300V

THREE、ENDURANCE CHARACTERISTIC

1. Rotational life : 30,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
