RS1704 Multiplex switch

Series：RS1704

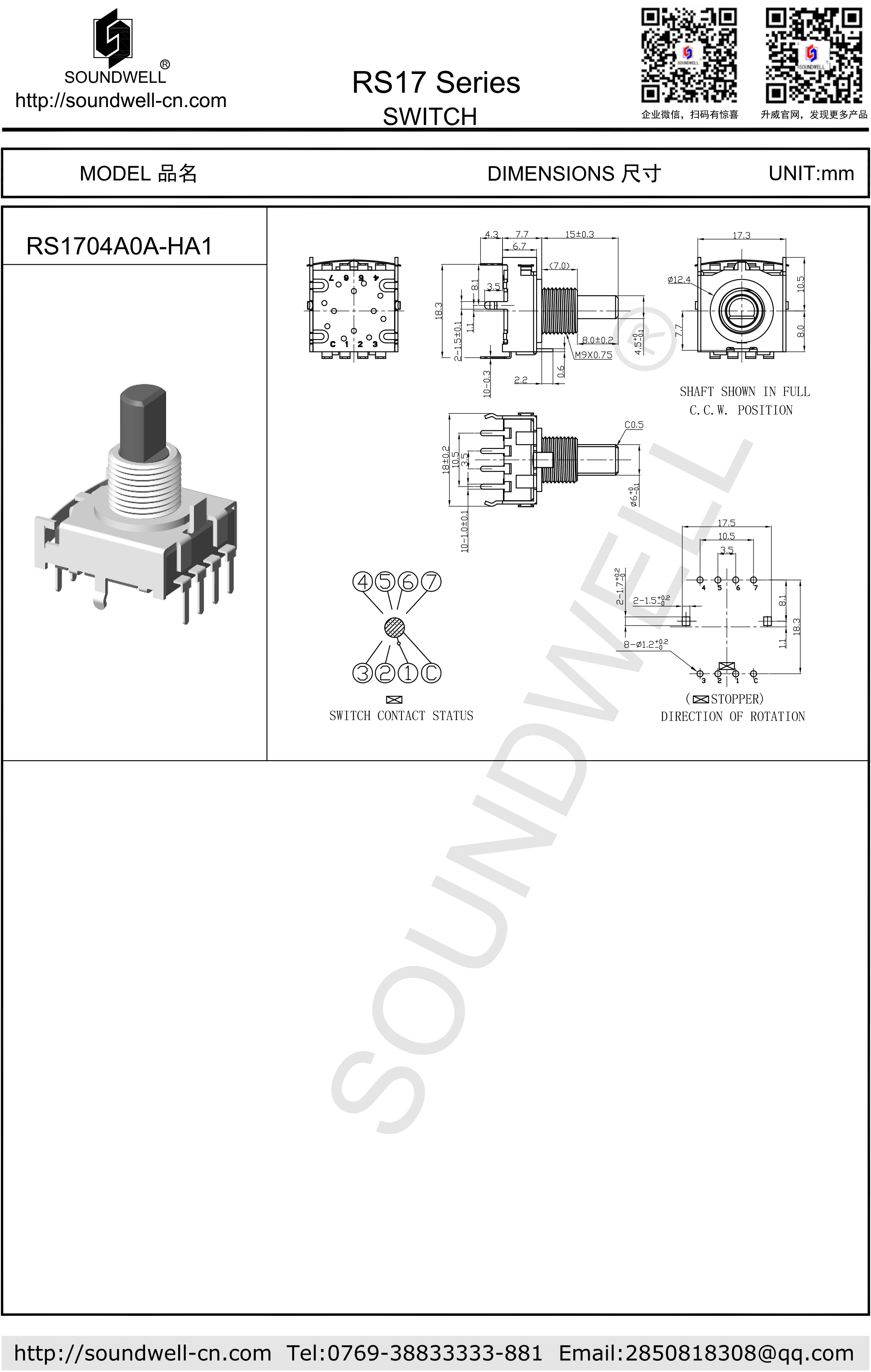

Format：See the following profile

Specifications　　

Multi-way switch model:	RS1704
name:	Plastic shaft rotary switch
Main specifications:	Dimensions: 17mm; Rated power: DC16V 0.3A; Contact resistance: 100mΩ Max; Number of positions: 2 ~ 7; Operating temperature: -10 ℃ ～ 70 ℃; Operating life: more than 10,000 times;
Features:	2~7 positions available with clear sense of clicks; Available in various shaft options;
Application areas:	Home appliances such as micro- wave ovens, washing machines, audio devices, health care systems or other electronic products; The main functions are function switching, speed adjustment, temperature adjustment and so on.

RS1704 Product Specifications

一、MECHANICAL CHARACTERISTIC
1、Rotational torque ：100~400gf.cm
2、Step angle ：45°±3°

二、ELECTRICAL CHARACTERISTIC
1、Contact resistance ：100mΩ Max
2、Rated power ：DC16V 0.3A
3、Number of detent ：2～7
4、Insulation resistance ：100MΩ 1 Minute at DC 100V
5、Dielectric voltage ：1 Minute at AC 100V

三、ENDURANCE CHARACTERISTIC
1、Rotational life ：10,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
