10mm Travel Slide potentiometer

Series：SV10

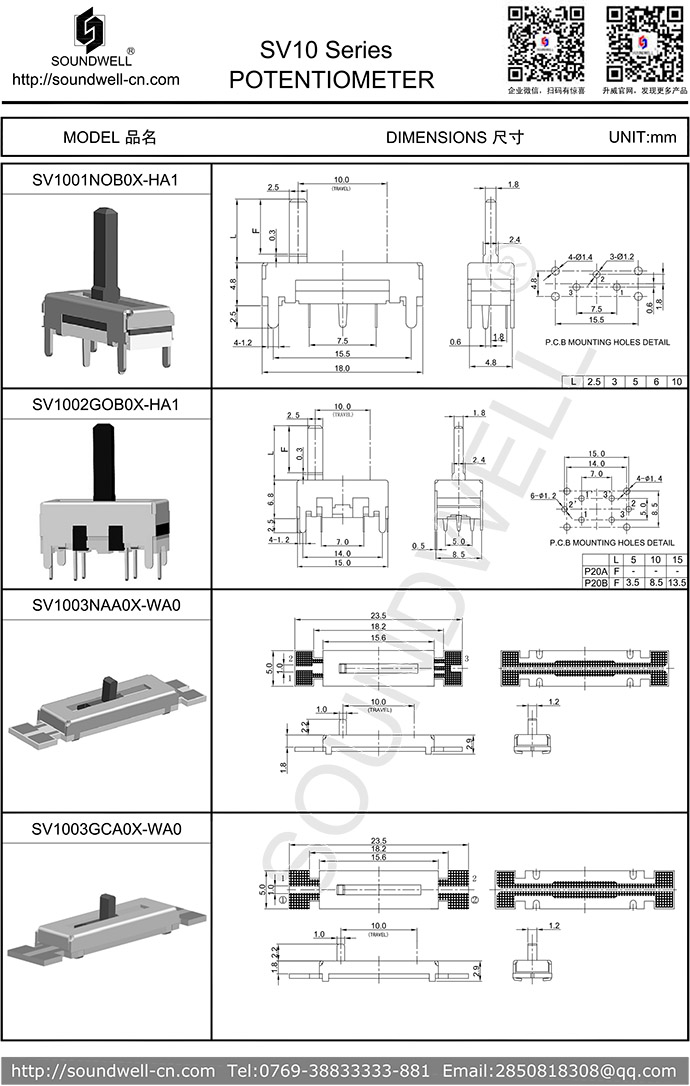

Format：See the following profile

Specifications　　

Potentiometer model：	SV10 series
Name：	10mm Mini SMD Slide Potentiometers
Main Specifications:	Travel: 10mm； Resistance Tolerance: ±20%； Rated power: 0.05W； Operating temperature: -10℃~70℃； Operating life: 5,000 Min；
Product Features：	Small size with high precision;
Applications：	Volume control for headphones, mini audio devices, radios and other electronic products.

SV10 Product Specifications

ONE、MECHANICAL CHARACTERISTIC
1. Operating force: 10~200gf.cm
2. Slide Travel: 10±0.5mm
3. Lever Stop strength: 3Kgf
4. Lever Wobble: 2(2XL/25)mmp-p

TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: 1KΩ＜R＜1MΩ, ±20%; 1KΩ≥R or R≥1MΩ, ±30%
2. Resistance Taper: B
3. Power Rating: 0.05W
4. Insulation Resistance: 100 MΩ 1 Min at DC 250V
5. Dielectric Voltage: 1 Minute at AC100V

THREE、ENDURANCE CHARACTERISTIC
1. Operating Life: 5,000 Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
